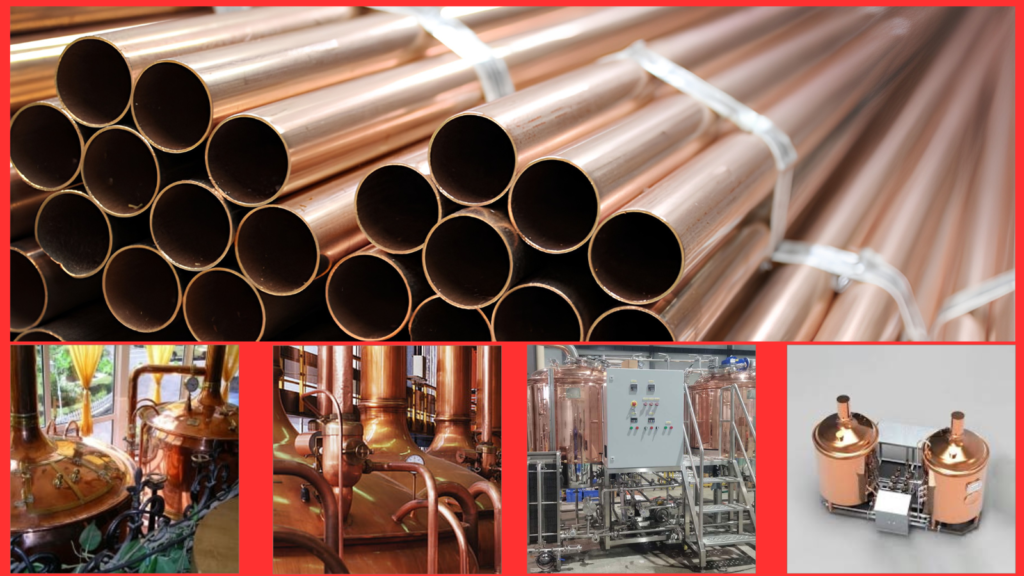

Brewery Copper Pipes Manufacturer and Supplier in India

March 30, 2026
Copper Pipes, Copper Tube

Manibhadra Fitting is a manufacturer and supplier of high quality brewery copper pipes that are specifically designed to be used in breweries. Through our pipes, we have a high level of hygiene, heat transfer capability and durability during brewing. and having the accuracy of engineering and quality standards, we provide a viable solution of copper piping that can be used in modern breweries. We offer breweries in India with quality, durability and tailor-made solutions.

Table of Contents

Brewery Copper Pipes Manufacturer and Supplier in India

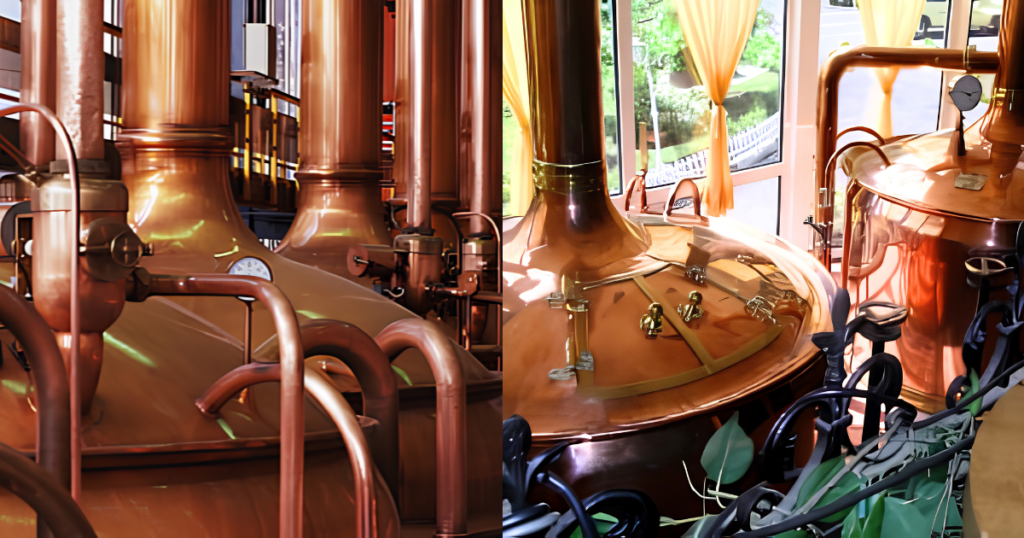

Copper Pipes For Breweries

Copper piping is mandatory in the brewery set-ups, which are used commonly in transferring wort, cooling and distillation of wort. They have a good thermal conductivity and thus, enable perfect temperature control during the brewing process. Their inherent anti microbial qualities guarantee a sanitary ambience, and maintain the quality and the flavor of the drink. At Manibhadra Fitting, we have carried out production of our copper pipes to provide functionality, fluidity and reliable operation in challenging brewery production.

Specification Of Brewery Copper Pipes

The brewery systems may have copper pipes which are produced to meet the high standards of hygiene, strength, and thermal efficiency. They are produced with the high-purity copper to provide the smooth flow of fluids and corrosion resistance. Manibhadra Fitting is the manufacturer of pipes of correct sizes and adjustable features to be used in different brewing activities.

Technical Specifications
Standards	ASTM B88, EN 1057, IS 1545 / IS 2501, ASTM B75
Wall Thickness Types	Type K (Heavy Duty), Type L (Medium), Type M (Light Duty)
Material Grade	C12200 (Cu-DHP), C10200 (OFHC)
Purity Level	99.9% High-Purity Copper
Diameter Range	6 mm to 267 mm
Temper Types	Hard Drawn (H58/R290), Annealed/Soft (O60/R220)
Form	Straight Lengths / Coils
Thermal Conductivity	Excellent for heat transfer applications
Joining Method	Silver Soldering / Brazing (Food-Safe)
Corrosion Resistance	High (with proper maintenance)
Application	Wort Transfer, Cooling Systems, Distillation

Copper Pipes For Breweries

Cleaning Guidelines: Avoid strong acids and prolonged caustic exposure
Safety Note : Not recommended for long-term beer storage due to acidity

ASTM B88 Type K – Brewery Copper Pipe and Tubes Dimension, Size and Weight Table

ASTM B88 – Seamless Copper Water Tubes – Dimensions – Type K
Nominal Size (inches)	Actual Outside Diameter			Tolerance on Outside Diameter				Wall Thickness				Weight
	Actual Outside Diameter			Annealed		Drawn		Nominal		Tolerance		Weight
	(inches)		(mm)	(inches)	(mm)	(inches)	(mm)	(inches)	(mm)	(inches)	(mm)	(lb/ft)	(Kg/m)
1/4	3/8	0.375	9.52	0.002	0.0508	0.001	0.0254	0.035	0.889	0.0035	0.0889	0.133	0.20
3/8	1/2	0.5	12.7	0.0025	0.0635	0.001	0.0254	0.049	1.24	0.005	0.127	0.269	0.40
1/2	5/8	0.625	15.9	0.0025	0.0635	0.001	0.0254	0.049	1.24	0.005	0.127	0.344	0.51
5/8	3/4	0.75	19	0.0025	0.0635	0.001	0.0254	0.049	1.24	0.005	0.127	0.418	0.62
3/4	7/8	0.875	22.2	0.003	0.0762	0.001	0.0254	0.065	1.65	0.006	0.152	0.641	0.95
1	1 1/8	1.125	28.6	0.0035	0.0889	0.0015	0.0381	0.065	1.65	0.006	0.152	0.837	1.25
1 1/4	1 3/8	1.375	34.9	0.004	0.102	0.0015	0.0381	0.065	1.65	0.006	0.152	1.04	1.55
1 1/2	1 5/8	1.625	41.3	0.0045	0.114	0.002	0.0508	0.072	1.83	0.007	0.178	1.36	2.02
2	2 1/8	2.125	54	0.005	0.127	0.002	0.0508	0.083	2.11	0.008	0.203	2.06	3.07
2 1/2	2 5/8	2.625	66.7	0.005	0.127	0.002	0.0508	0.095	2.41	0.01	0.254	2.92	4.35
3	3 1/8	3.125	79.4	0.005	0.127	0.002	0.0508	0.109	2.77	0.011	0.279	4	5.95
3 1/2	3 5/8	3.625	92.1	0.005	0.127	0.002	0.0508	0.12	3.05	0.012	0.305	5.12	7.62
4	4 1/8	4.125	105	0.005	0.127	0.002	0.0508	0.134	3.4	0.013	0.33	6.51	9.69
5	5 1/8	5.125	130	0.005	0.127	0.002	0.0508	0.16	4.06	0.016	0.406	9.67	14.39
6	6 1/8	6.125	156	0.005	0.127	0.002	0.0508	0.192	4.88	0.019	0.483	13.87	20.64

ASTM B88 Type K Copper Pipes For Breweries

ASTM B88 Type L – Brewery Copper Pipe and Tubes Dimension, Size and Weight Table

Nominal Size	Actual Outside Diameter			Weight		Tolerance on Outside Diameter				Wall Thickness
Nominal Size	Actual Outside Diameter			Weight		Annealed		Drawn		Nominal		Tolerance
(inches)	(inches)	(inches)	(mm)	(lb/ft)	(kg/m)	(inches)	(mm)	(inches)	(mm)	(inches)	(mm)	(inches)	(mm)
1/4	3/8	0.375	9.52	0.126	0.187	0.002	0.0508	0.001	0.0254	0.03	0.762	0.003	0.0762
3/8	1/2	0.5	12.7	0.198	0.286	0.0025	0.0635	0.001	0.0254	0.035	0.889	0.004	0.102
1/2	5/8	0.625	15.9	0.285	0.424	0.0025	0.0635	0.001	0.0254	0.04	1.02	0.004	0.102
5/8	3/4	0.75	19	0.362	0.539	0.0025	0.0635	0.001	0.0254	0.042	1.07	0.004	0.102
3/4	7/8	0.875	22.2	0.455	0.678	0.003	0.0762	0.001	0.0254	0.045	1.14	0.004	0.102
1	1 1/8	1.125	28.6	0.655	0.974	0.0035	0.0889	0.0015	0.0381	0.05	1.27	0.005	0.127
1 1/4	1 3/8	1.375	34.9	0.884	1.315	0.004	0.102	0.0015	0.0381	0.055	1.4	0.006	0.152
1 1/2	1 5/8	1.625	41.3	1.14	1.697	0.0045	0.114	0.002	0.0508	0.06	1.52	0.006	0.152
2	2 1/8	2.125	54	1.75	2.602	0.005	0.127	0.002	0.0508	0.07	1.78	0.007	0.178
2 1/2	2 5/8	2.625	66.7	2.48	3.687	0.005	0.127	0.002	0.0508	0.08	2.03	0.008	0.203
3	3 1/8	3.125	79.4	3.33	4.954	0.005	0.127	0.002	0.0508	0.09	2.29	0.009	0.229
3 1/2	3 5/8	3.625	92.1	4.29	6.381	0.005	0.127	0.002	0.0508	0.1	2.54	0.01	0.254
4	4 1/8	4.125	105	5.38	8.007	0.005	0.127	0.002	0.0508	0.114	2.9	0.011	0.279
5	5 1/8	5.125	130	7.61	11.33	0.005	0.127	0.002	0.0508	0.125	3.18	0.012	0.305
6	6 1/8	6.125	156	10.2	15.18	0.005	0.127	0.002	0.0508	0.14	3.56	0.014	0.356

ASTM B88 Type L Copper Pipes For Breweries

ASTM B88 Type M – Brewery Copper Pipe and Tubes Dimension, Size and Weight Table

Nominal Size	Actual Outside Diameter			Tolerance on Outside Diameter				Wall Thickness				Weight
Nominal Size	Actual Outside Diameter			Annealed		Drawn		Nominal		Tolerance		Weight
(inches)	(inches)	(inches)	(mm)	(inches)	(mm)	(inches)	(mm)	(inches)	(mm)	(inches)	(mm)	(lb/ft)	(mm)
1/4	3/8	0.375	9.52	0.002	0.0508	0.001	0.0254	–	–	–	–	0.106	0.158
3/8	1/2	0.5	12.7	0.0025	0.0635	0.001	0.0254	0.025	0.64	0.002	0.0508	0.144	0.214
1/2	5/8	0.625	15.9	0.0025	0.0635	0.001	0.0254	0.028	0.71	0.003	0.0762	0.203	0.302
5/8	3/4	0.75	19	0.0025	0.0635	0.001	0.0254	–	–	–	–	0.263	0.391
3/4	7/8	0.875	22.2	0.003	0.0762	0.001	0.0254	0.032	0.81	0.003	0.0762	0.328	0.488
1	1 1/8	1.125	28.6	0.0035	0.0889	0.0015	0.0381	0.035	0.89	0.004	0.102	0.464	0.691
1 1/4	1 3/8	1.375	34.9	0.004	0.102	0.0015	0.0381	0.042	1.07	0.004	0.102	0.681	1.013
1 1/2	1 5/8	1.625	41.3	0.0045	0.114	0.002	0.0508	0.049	1.24	0.005	0.127	0.94	1.399
2	2 1/8	2.125	54	0.005	0.127	0.002	0.0508	0.058	1.47	0.006	0.152	1.46	2.173
2 1/2	2 5/8	2.625	66.7	0.005	0.127	0.002	0.0508	0.065	1.65	0.006	0.152	2.03	3.021
3	3 1/8	3.125	79.4	0.005	0.127	0.002	0.0508	0.072	1.83	0.007	0.178	2.68	3.988
3 1/2	3 5/8	3.625	92.1	0.005	0.127	0.002	0.0508	0.083	2.11	0.008	0.203	3.58	5.328
4	4 1/8	4.125	105	0.005	0.127	0.002	0.0508	0.095	2.41	0.01	0.254	4.66	6.935
5	5 1/8	5.125	130	0.005	0.127	0.002	0.0508	0.109	2.77	0.011	0.279	6.66	9.911
6	6 1/8	6.125	156	0.005	0.127	0.002	0.0508	0.122	3.10	0.012	0.305	8.91	13.260

ASTM B88 Type L Copper Pipes For Breweries

EN 1057 R250 Half hard and R290 Hard Plain Straight Brewery Copper Pipe and Tubes Dimension, Size and Weight Table

Nominal Outside Diameter (mm)	Tube Length (m)	Wall Thickness (mm)
Nominal Outside Diameter (mm)	Tube Length (m)	X	Y
6	3, 6	0.6	0.8
8	3, 6	0.6	0.8
10	3, 6	0.6	0.8
15	3, 6	0.7	1.0
22	3, 6	0.9	1.2
28	3, 6	0.9	1.2
35	3, 6	1.2	1.5
42	3, 6	1.2	1.5
54	3, 6	1.2	2.0
67	3, 6	1.2	2.0
76	3, 6	1.5	2.0
108	3, 6	1.5	2.5
133	3, 6	1.5
159	3, 6	2.0
219	6	3.0

EN 1057 R250 Half hard and R290 Hard Plain Straight Copper Pipes For Breweries

EN 1057 Brewery Copper Pipe and Tubes Material Temper

Material Temper		Size Range	Tensile Strength	Elongation min.	Vickers Hardness
EN 1173 Designation	Commonly used term	(mm)	(MPa)	(%)	HV5
R220	annealed, soft	6 – 54	220	40	40 – 70
R250	half hard	6 – 66.7	250	20	75 – 100
R290	hard	6 – 159	290	5	95 – 120

EN 1057 Copper Pipes For Breweries

EN 1057 R250 Half hard and R290 Hard Chrome Brewery Copper Pipe and Tubes Dimension, Size and Weight Table

Nominal Outside Diameter (mm)	Tube Length (m)	Wall Thickness (mm)
15	2, 3	0.7
22	2, 3	0.9
28	3	0.9
35	3	1.0
42	3	1.0
54	3	1.0

EN 1057 R250 Half hard and R290 Hard Chrome Copper Pipes For Breweries

ASTM B75 Brewery Copper Pipe and Tubes Dimension, Size and Weight Table

Nominal Size	Outside Diameter (in)	Inside Diameter (in)	Wall Thickness (in)	Internal Volume of Tube (ft³/ft)
1/4	0.375	0.305	0.035	0.00051
3/8	0.500	0.402	0.049	0.00088
1/2	0.625	0.527	0.049	0.00151
5/8	0.750	0.652	0.049	0.00232
3/4	0.875	0.745	0.065	0.00303
1	1.125	0.995	0.065	0.00540
1 1/4	1.375	1.245	0.065	0.00845
1 1/2	1.625	1.481	0.072	0.0120
2	2.125	1.959	0.083	0.0209
2 1/2	2.625	2.435	0.095	0.0323
3	3.125	2.907	0.109	0.0461
4	4.125	3.857	0.134	0.0811
5	5.125	4.805	0.160	0.126
6	6.125	5.741	0.192	0.180
8	8.125	7.583	0.271	0.314

ASTM B75 Copper Pipes For Breweries

Call Us For Copper Pipes and Copper Tubes

Mail Us For Copper Pipes and Copper Tubes

WhatsApp Us For Copper Pipes and Copper Tubes

Properties of Brewery Copper Pipes

Copper piping in breweries is also a good thermal and hygienic product and therefore suitable in critical brewing processes. They are effective and durable thus always performing well in harsh industrial settings.
